Hinged door

Product description

Additional options

Ask a question

By default, stainless steel hinged freezer doors operating at temperatures from -1 ° C to -50 ° C include:

door wing 120 mm thick, straight door frame 40 mm thick
stainless steel sheet of 2B matte structure
thermal insulation in the form of a filling of polyurethane foam with a density of approx. 50 kg / m3,
stainless steel angle hinges
double silicone gasket, directly to the floor,
heaters in the door panel and the door frame, depending on the temperature
double-sided interlocking system with a lever
single or double-winged doors
internal stainless steel reinforcements
possibility to order larger dimensions.
doors with a cavity for a rail track

Model

ZK-10 - single-leaf stainless steel hinged freezer door

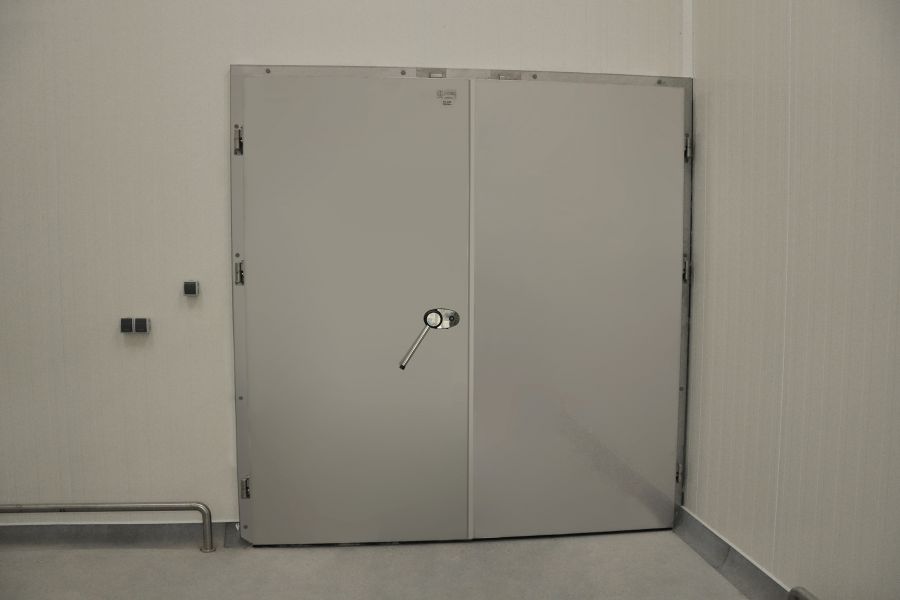

ZK-20- double-leaf stainless steel hinged freezer door

ZK- 30 - stainless steel freezer door freezing for a rail track

•   steel sheet texture: polished, grain

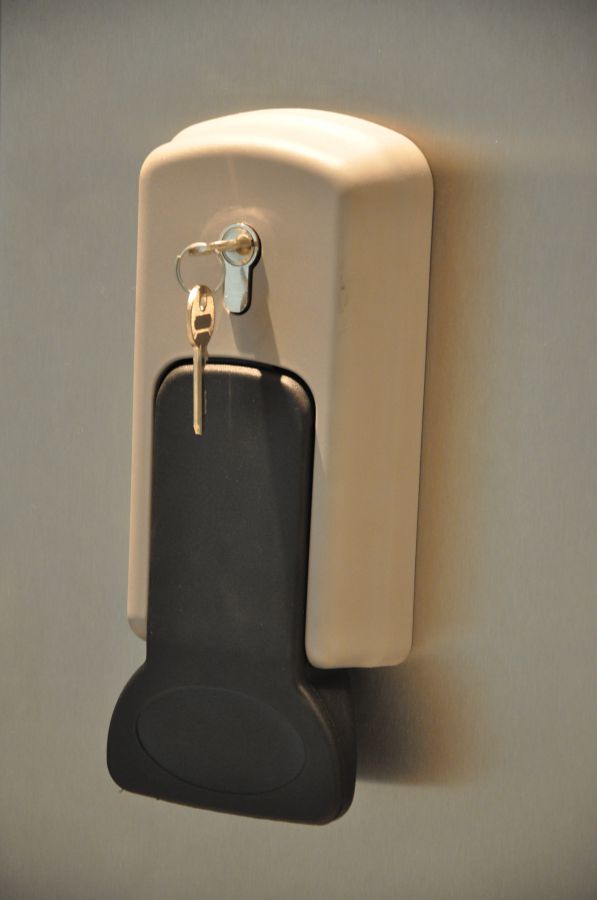

•   safe lock with HPO unlock option
•   single or double-sided HPZ lock with open / closed indicator
•   lock made entirely of stainless steel
•   Additional hardware - wall treatment
•   door automatics
•   Reinforced solid polycarbonate doors
