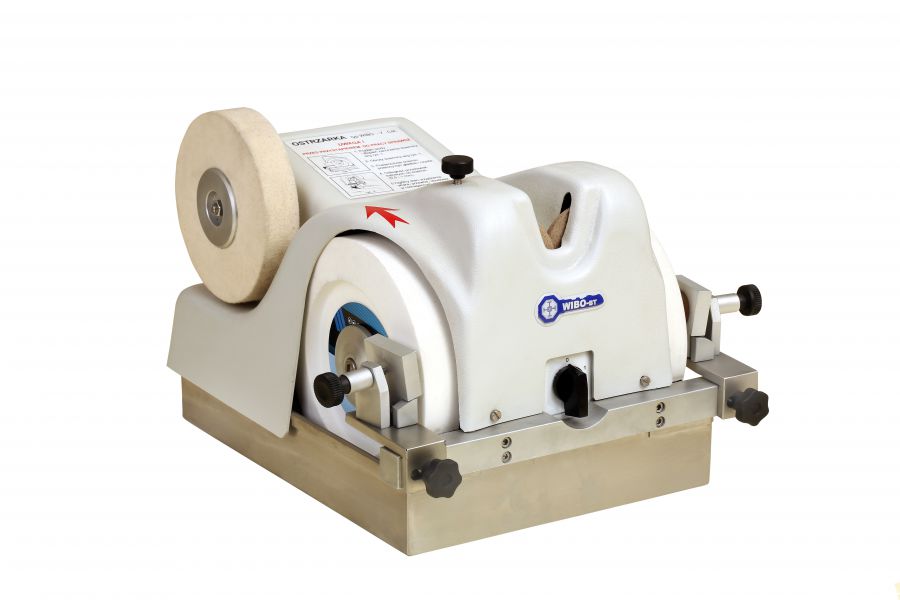

Slaughter blades sharpener W7C

Application:
•   Sharpening the knives of different types and different thickness used in food processing

Result:
•   Excellent quality of blades with easy and convenient operation of the sharpener
•   Increased blade's life
•   Adjusting the angle of the blade to the user's needs

Technical description

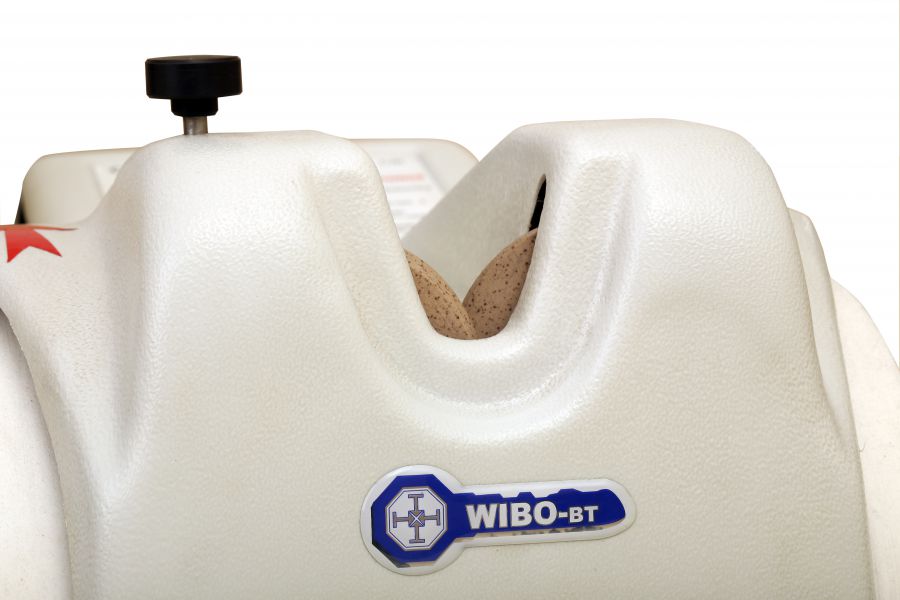

Slaughter blades sharpener W7C is a device easy to use, yet very powerful. Three-phase sharpening process is achieved by specially contoured grinding stones. Easy and convenient operation of the sharpener is provided by magnetic extension for running the knife steadily.
Water cooling is applied during the process of sharpening to obtain longer blade's life.

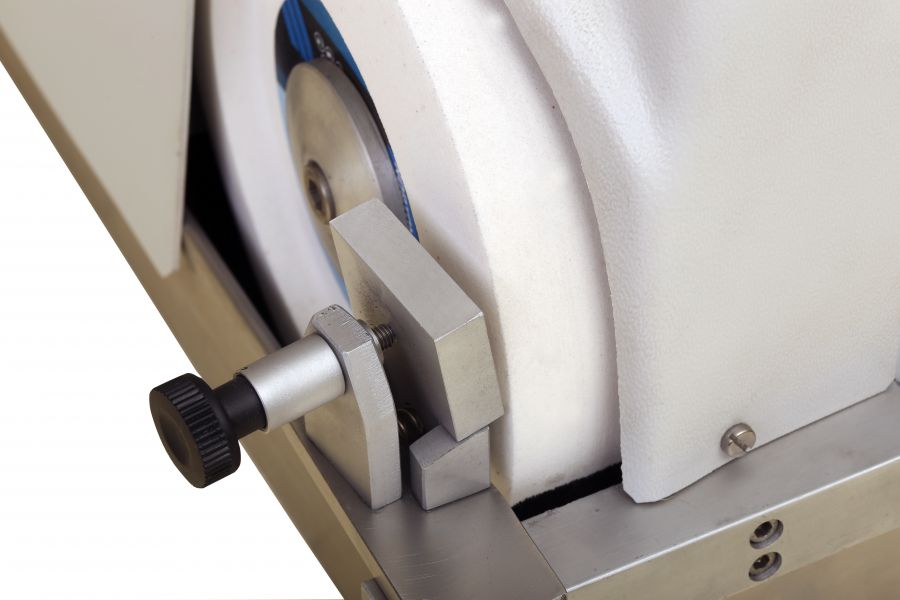

By regulating the angle of the guides it is possible to adjust the angle of the blade according to your needs.
The use of profiling ceramic disks allows for precise alignment of the blade (wire-edge removal) and a felt wheel finishes the sharpening stage.

Model

W7-C Universal knife sharpeners

Voltage	230 V
Rated motor current	1,25 A
power	0,18 kW
Level of protection	IP54
Rotational speed	1350 obr/min
Rotating parts	grinding wheels,smoothing discs
Dimensions height x width x depth	380x300x270
Weight	17 kg
